Sheet Metal Stamping Parts

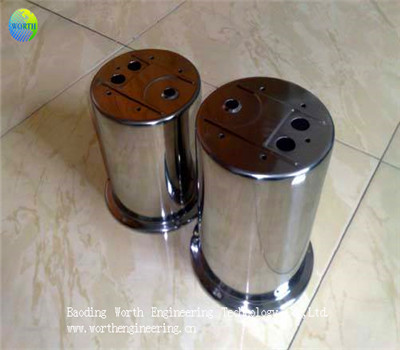

  • Custom Stainless Metal Deep Drawing Car Parts with Polishing
Custom Stainless Metal Deep Drawing Car Parts with Polishing

Custom Stainless Metal Deep Drawing Car Parts with Polishing

  • Product ID: Stamping-13
  • Material: Stainless Steel, Brass, Aluminum, Steel
  • Supply Ability: 10000
  • Packing: Wooden Case/Pallet
  • Product description: Baoding Worth Engineering Technology Co., Ltd. Stamping, deep drawn, cnc machining accessories for engine,refrigerator, air conditioner, compressor, pump, gearbox, valve, strainer, tractor, automotive
  • INQUIRY



Stamping (also known as pressing) is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a net shape. Stamping includes a variety of sheet-metal forming manufacturing processes, such as punching using a machine press or stamping press, blanking, embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the press produces the desired form on the sheet metal part, or could occur through a series of stages. The process is usually carried out on sheet metal, but can also be used on other materials, such as polystyrene.


Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter. This is achieved by redrawing the part through a series of dies. The flange region (sheet metal in the die shoulder area) experiences a radial drawing stress and a tangential compressive stress due to the material retention property. These compressive stresses (hoop stresses) result in flange wrinkles (wrinkles of the first order). Wrinkles can be prevented by using a blank holder, the function of which is to facilitate controlled material flow into the die radius.

Company Capabilities:


(1).CNC machining parts
(2).The fabrication
(3).The mechanical assemble
(4).The Surface treatment

Plating :3+Cr,environmental,anti-corrosion maximum 480 hours salt spray test
Coating:powder coating,electrcial coating,maximum 480 hours salt spray test
Painting:environmental EXPOSY painting,cross-cutting test
Polish:satin polish,mirror polish,electrical polish, maximum 1200 grid
Dacromet:evironmental,anti-corrosion,maximum 560 hours salt spary test
Anodization:tumble,shot blast,sand blast.....,various color,maximum 480 hours salt spray test
Nylok:tight-locking,environmental,5 million times
Heat Treatment:adjust the mechanical properties,temper,normalization,quench......
(5).The Variousl Material
stainless steel:SS304,SS304L,SS316,SS316L,SS430,SS201......
aluminium:7075,6061,6063,5082,5051,2014.......
brass:H62,H58,H59......
steel:C20,C45,C60,C35......
steel alloy:25CrMo,42CrMo,25Cr,40Cr,Q345,11SMn30......
iron cast:QT600,QT250,HT450,HT150......
titanium alloy:GR2,GR5,GR7,GR9......
tungsten alloy:WuNiFe alloy,Carbide Wolfram......
the blanks:stamping parts,forging parts,die casting parts,profile,extrusion......
the plastic:PP,PE,POM,Acrylic,ABS,Delrin......
